百利通亞陶晶振公司憑著自身獨有的魅力和誠信與許多用戶建立了密切的合作關系,用心發覺客戶需求,并針對性提供完美的晶振解決方案,使得用戶更信賴亞陶,優質的產品無疑能夠讓亞陶從眾多企業當中脫穎而出。Diodes服務的市場包括消費性電子、計算機、通訊、工業及汽車市場.Diodes推出新型的32.768KHz時鐘振蕩器為各種應用提供卓越性能FD2600033,ECERA晶振

Our 32.768kHz Crystal Oscillators (XO) have a superior performance for a wide range of applications. Among our offerings, is the world’s smallest 32.768kHz crystal oscillator (XO) with dimensions of only 2.0 x 1.6 mm (KM series). The KM series is designed to meet the challenges of miniaturization while maintaining superb accuracy of the timing signal. We also carry the KX series of crystal oscillators, which are the industry’s lowest power (at less than 10 µA) and tightest stability (+/- 20 ppm) 32kHz XOs.
我們的 32.768kHz 晶體振蕩器 (XO) 具有適用于各種應用的卓越性能。我們的產品包括世界上最小的 32.768kHz 晶體振蕩器 (XO)，尺寸僅為 2.0 x 1.6 mm（KM 系列）。KM 系列旨在應對小型化的挑戰，同時保持時序信號的卓越精度。我們還提供 KX 系列晶體振蕩器，它們是業界功耗最低（小于 10 µA）和最嚴格穩定性 (+/- 20 ppm) 的 32kHz XO。

FN6400020	Diodes晶振	SaRonix-eCera™ FN	64MHz	±25ppm	-20°C ~ 70°C
FN6600053	Diodes晶振	SaRonix-eCera™ FN	66MHz	±25ppm	-20°C ~ 70°C
FN6600055	Diodes晶振	SaRonix-eCera™ FN	66MHz	±50ppm	-20°C ~ 70°C
FN6600056	Diodes晶振	SaRonix-eCera™ FN	66MHz	±50ppm	-40°C ~ 85°C
FN6660065	Diodes晶振	SaRonix-eCera™ FN	66.66MHz	±50ppm	-40°C ~ 85°C
FN6660068	Diodes晶振	SaRonix-eCera™ FN	66.666MHz	±50ppm	-40°C ~ 85°C
FN6660069	Diodes晶振	SaRonix-eCera™ FN	66.667MHz	±50ppm	-20°C ~ 70°C
FN6660070	Diodes晶振	SaRonix-eCera™ FN	66.667MHz	±25ppm	-20°C ~ 70°C
FN6660071	Diodes晶振	SaRonix-eCera™ FN	66.667MHz	±50ppm	-40°C ~ 85°C
FN6660072	Diodes晶振	SaRonix-eCera™ FN	66.667MHz	±25ppm	-20°C ~ 70°C
FN6660074	Diodes晶振	SaRonix-eCera™ FN	66.666MHz	±50ppm	-20°C ~ 70°C
FN7410003	Diodes晶振	SaRonix-eCera™ FN	74.175MHz	±50ppm	-20°C ~ 70°C
UK2600002	Diodes晶振	SaRonix-eCera™ UK	26MHz	±20ppm	-30°C ~ 85°C
NX5021E0156.250000	Diodes晶振	SaRonix-eCera™ NX	156.25MHz	±50ppm	-40°C ~ 85°C
NX5031E0166.666666	Diodes晶振	SaRonix-eCera™ NX	166.666666MHz	±50ppm	-40°C ~ 85°C
NX3222E0156.250000	Diodes晶振	SaRonix-eCera™ NX	156.25MHz	±50ppm	-40°C ~ 85°C
FN1220025	Diodes晶振	SaRonix-eCera™ FN	12.288MHz	±50ppm	-40°C ~ 85°C
UJ2600003	Diodes晶振	SaRonix-eCera™ UJ	26MHz	±20ppm	-20°C ~ 70°C
JT255CP0026.000000	Diodes晶振	SaRonix-eCera™ JT	26MHz	±500ppb	-40°C ~ 85°C

Due to many low-power and portable applications spending the majority of time in standby mode, it is critical for these systems to minimize standby power consumption. Our 32.768 kHz-based timing sources allow these systems to transition to standby mode quickly (<10ms) to maximize battery life without sacrificing the stability (± 20ppm) needed to maintain an accurate clock and calendar.由于許多低功耗和便攜式應用程序大部分時間都處于待機模式，因此這些系統必須最大限度地降低待機功耗。我們基于 32.768 kHz 的定時源允許這些系統快速轉換到待機模式（<10ms），以最大限度地延長電池壽命，而不會犧牲維持準確時鐘和日歷所需的穩定性（± 20ppm）。

JT255CP0026.000000	Diodes晶振	SaRonix-eCera™ JT	26MHz	±500ppb	-40°C ~ 85°C
JT255CP0026.000000	Diodes晶振	SaRonix-eCera™ JT	26MHz	±500ppb	-40°C ~ 85°C
FD0670003	Diodes晶振	SaRonix-eCera™ FD	6.7584MHz	±25ppm	-40°C ~ 85°C
FD1300023	Diodes晶振	SaRonix-eCera™ FD	13MHz	±20ppm	-20°C ~ 70°C
FD1300024	Diodes晶振	SaRonix-eCera™ FD	13MHz	±20ppm	-20°C ~ 70°C
FD1430019	Diodes晶振	SaRonix-eCera™ FD	14.31818MHz	±25ppm	-40°C ~ 85°C
FD1940003	Diodes晶振	SaRonix-eCera™ FD	19.44MHz	±20ppm	-20°C ~ 70°C
FD2000047	Diodes晶振	SaRonix-eCera™ FD	20MHz	±20ppm	-20°C ~ 70°C
FD2000051	Diodes晶振	SaRonix-eCera™ FD	20MHz	±20ppm	-20°C ~ 70°C
FD2400026	Diodes晶振	SaRonix-eCera™ FD	24MHz	±20ppm	-20°C ~ 70°C
FD2500051	Diodes晶振	SaRonix-eCera™ FD	25MHz	±20ppm	-20°C ~ 70°C
FD2500053	Diodes晶振	SaRonix-eCera™ FD	25MHz	±20ppm	-20°C ~ 70°C
FD2500063	Diodes晶振	SaRonix-eCera™ FD	25MHz	±25ppm	-40°C ~ 85°C
FD2600029	Diodes晶振	SaRonix-eCera™ FD	26MHz	±20ppm	-20°C ~ 70°C
FD2600032	Diodes晶振	SaRonix-eCera™ FD	26MHz	±20ppm	-20°C ~ 70°C
FD2600033	Diodes晶振	SaRonix-eCera™ FD	26MHz	±25ppm	-40°C ~ 85°C
FD2700036	Diodes晶振	SaRonix-eCera™ FD	27MHz	±20ppm	-20°C ~ 70°C
FD2700042	Diodes晶振	SaRonix-eCera™ FD	27MHz	±25ppm	-40°C ~ 85°C
FD3300020	Diodes晶振	SaRonix-eCera™ FD	33MHz	±20ppm	-20°C ~ 70°C
FD3330023	Diodes晶振	SaRonix-eCera™ FD	33.333MHz	±20ppm	-20°C ~ 70°C

產品特性
AEC-Q200合格
32.768千赫
1.8V CMOS兼容邏輯電平
低功耗待機模式(< 10 μ A)
低功率有源模式(< 0.17mA典型值)
用于標準回流和洗滌技術
無鉛和RoHS/綠色環保

FD3330025	Diodes晶振	SaRonix-eCera™ FD	33.333333MHz	±20ppm	-20°C ~ 70°C
FD3720001	Diodes晶振	SaRonix-eCera™ FD	37.2MHz	±20ppm	-20°C ~ 70°C
FD3840012	Diodes晶振	SaRonix-eCera™ FD	38.4MHz	±20ppm	-20°C ~ 70°C
FD3840014	Diodes晶振	SaRonix-eCera™ FD	38.4MHz	±25ppm	-40°C ~ 85°C
FD4000106	Diodes晶振	SaRonix-eCera™ FD	40MHz	±20ppm	-20°C ~ 70°C
FD4000136	Diodes晶振	SaRonix-eCera™ FD	40MHz	±20ppm	-20°C ~ 70°C
FD5000038	Diodes晶振	SaRonix-eCera™ FD	50MHz	±20ppm	-20°C ~ 70°C
FD5400016	Diodes晶振	SaRonix-eCera™ FD	54MHz	±20ppm	-20°C ~ 70°C
FD5780001	Diodes晶振	SaRonix-eCera™ FD	57.875MHz	±20ppm	-20°C ~ 70°C
FD7500012	Diodes晶振	SaRonix-eCera™ FD	75MHz	±20ppm	-20°C ~ 70°C
FD8000008	Diodes晶振	SaRonix-eCera™ FD	80MHz	±25ppm	-20°C ~ 70°C
FD8500001	Diodes晶振	SaRonix-eCera™ FD	85MHz	±25ppm	-20°C ~ 70°C
FDA000017	Diodes晶振	SaRonix-eCera™ FD	100MHz	±50ppm	-20°C ~ 70°C
FDA000018	Diodes晶振	SaRonix-eCera™ FD	100MHz	±25ppm	-20°C ~ 70°C
FDA000019	Diodes晶振	SaRonix-eCera™ FD	100MHz	±50ppm	-40°C ~ 85°C
FDA000020	Diodes晶振	SaRonix-eCera™ FD	100MHz	±50ppm	-40°C ~ 85°C
FDA000021	Diodes晶振	SaRonix-eCera™ FD	100MHz	±50ppm	-40°C ~ 85°C
FDA000022	Diodes晶振	SaRonix-eCera™ FD	100MHz	±50ppm	-20°C ~ 70°C
FDA620005	Diodes晶振	SaRonix-eCera™ FD	106.25MHz	±50ppm	-20°C ~ 70°C
FDA620006	Diodes晶振	SaRonix-eCera™ FD	106.25MHz	±25ppm	-20°C ~ 70°C
FDA620007	Diodes晶振	SaRonix-eCera™ FD	106.25MHz	±50ppm	-40°C ~ 85°C

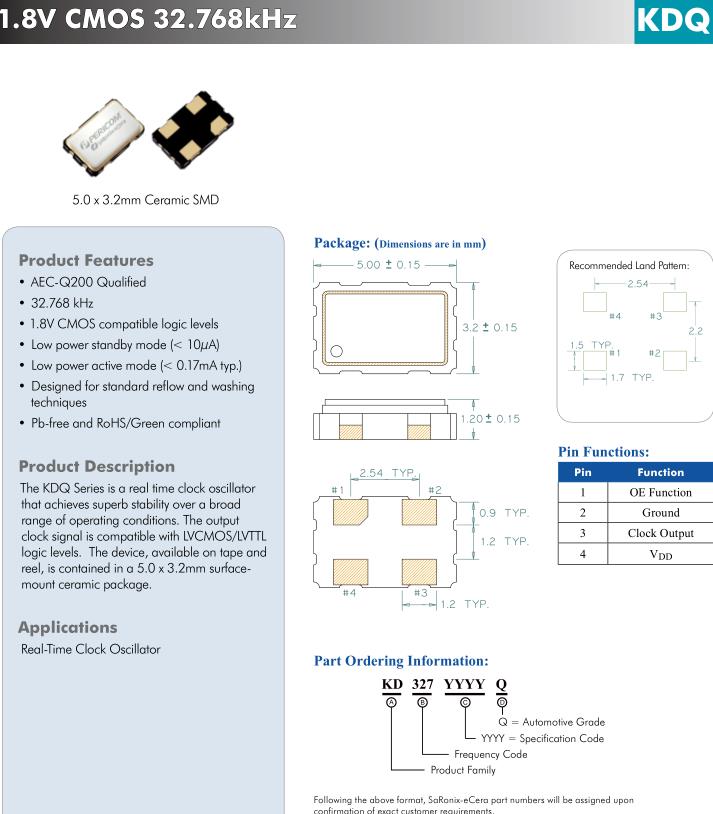

產品描述
KDQ系列是一款實時時鐘振蕩器這在廣闊的土地上實現了極好的穩定性操作條件的范圍。輸出時鐘信號兼容LVCMOS/LVTTL邏輯水平。設備，可在磁帶和卷軸，是包含在一個5.0 × 3.2mm的表面-陶瓷封裝。
應用程序
實時時鐘振蕩器
