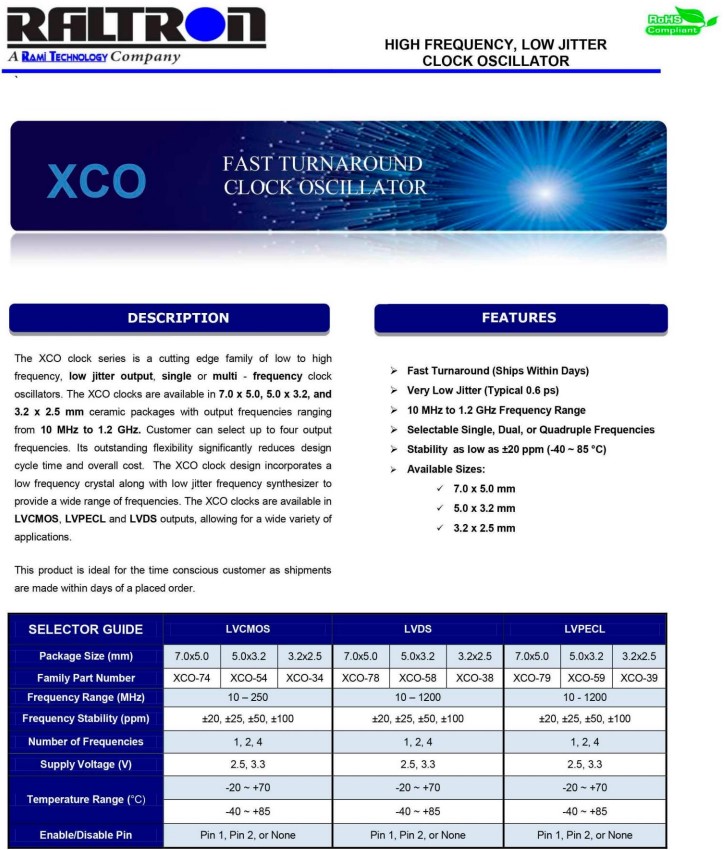

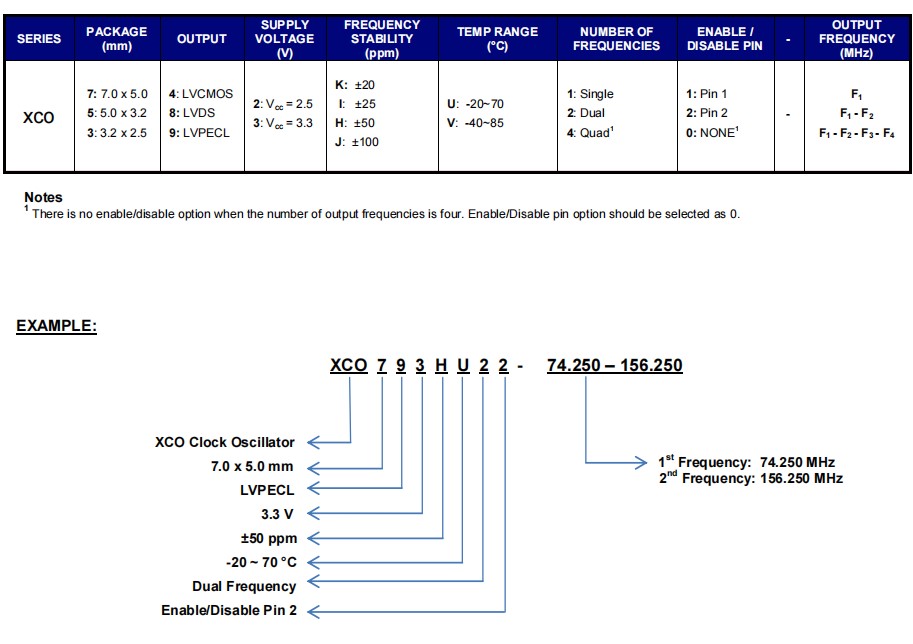

Raltron拉隆晶振公司通過紐約客電子公司提供XCO系列時鐘振蕩器，這是一個很好的替代解決方案。XCO時鐘系列是一個尖端的低頻到高頻、低抖動輸出、單頻或多頻時鐘振蕩器系列。石英振蕩器XCO提供7.0x5.0mm毫米、5.0x3.2mm毫米和3.2x2.5mm毫米陶瓷封裝，輸出頻率范圍為10MHz至1.2GHz，電壓范圍為2.5V和3.3V，頻率穩定性選項范圍為20PPM至100PPM。這種設計的高度靈活性大大減少了設計周期和總成本。有源晶振XCO時鐘設計結合了一個低頻晶體和低抖動頻率合成器，以提供寬范圍的頻率。XCO時鐘提供LVCMOS、LVPECL和LVDS輸出，支持廣泛的應用。低抖動輸出時鐘振蕩器XCO793HU22-77.503MHz微處理器應用

晶振詳情	頻率	頻率穩定性	電源電壓
CO4305-25.000-EXT-T-TR	25MHz	±50ppm	3.3V
Raltron
CO4 Series 25 MHz 3.3 V ±50 ppm -40°C TO +85°C SMT CMOS Clock Oscillator
CO4305-25.000-T-TR	25MHz	±50ppm	3.3V
Raltron
CO43 系列 25 MHz 7 x 5 mm 3.3 V ±50 ppm 表面貼裝時鐘振蕩器
C01100-66.666MHZ
Raltron拉隆晶振
CO1 Series 66.666 MHz 20.8 x 13.2 mm 5 V ±100 ppm Through Hole Clock Oscillator
C019100-20.000	20MHz	±100ppm	5V
Raltron
CO1 Series 20 MHz 5 V ±100 ppm -20°C TO +70°C Thru-Hole HCMOS Clock Oscillator
C04302-27.000-EXT-T	27MHz	±20ppm	3.3V
Raltron
CO43 Series 27 MHz 7 x 5 mm 3.3 V ±20 ppm Surface Mount Clock Oscillator
CO4310-32.000-EXT-T-TR
Raltron
CO4 Series 32 MHz 3.3 V ±100 ppm -40°C TO +85°C SMT CMOS Clock Oscillator
CO4310-32.000-EXT-TR	32MHz	±100ppm	3.3V
Raltron
CO43 Series 32 MHz 7 x 5 mm 3.3 V ±100 ppm Surface Mount Clock Oscillator
C04610-80.000-T-TR	80MHz	±100ppm	3.3V
Raltron
CO46 系列 80 MHz 7 x 5 mm 3.3 V ±100 ppm 表面貼裝時鐘振蕩器
C04810-20.000MHZ-EXT-TR	20MHz	±100ppm	5V
Raltron
CO48 Series 20 MHz 7 x 5 mm 5 V ±100 ppm Surface Mount Clock Oscillator
CLDPTSH-125.000	125MHz	±50ppm	2.5V
Raltron
Clock Series 125 MHz 2.5V ±50 ppm -0°C TO +70°C SMT LVDS Clock Oscillator
CO1050-29.4912	29.4912MHz	±50ppm	5V
Raltron
CO1 Series 29.4912 MHz 20.8 x 13.2 mm 5 V ±50 ppm Through Hole Clock Oscillator
CO1100-1.8432MHZ	1.8432MHz	±100ppm	5V
Raltron
CO1 Series 1.8432 MHz 20.8 x 13.2 mm 5 V ±100 ppm Through Hole Clock Oscillator
CO1100-11.0592MHZ	11.0592MHz	±100ppm	5V
Raltron
CO1 Series 4.9152 MHz 20.8 x 13.2 mm 5 V ±100 ppm Through Hole Clock Oscillator
CO1100-16.000MHZ-T	16MHz	±100ppm	5V
Raltron
CO1 Series 16 MHz 5 V ±100 ppm -20°C TO +70°C Thru-Hole TTL Clock Oscillator
CO1100-18.432-T	18.432MHz	±100ppm	5V
Raltron
CO1 Series 18.432 MHz 5 V ±100 ppm -20°C TO +70°C Thru-Hole TTL Clock Oscillator
CO1100-18.432-T	18.432MHz	±100ppm	5V
Raltron石英晶體振蕩器
CO1 Series 18.432 MHz 5 V ±100 ppm -20°C TO +70°C Thru-Hole TTL Clock Oscillator
CO1100-39.3216-T	39.3216MHz	±100ppm	5V
Raltron
CO1100 系列 39.3216 MHz 100 ppm 0° C至+70° C 時鐘振蕩器
CO1100-4.9152MHZ	4.9152MHz	±100ppm	5V
Raltron
CO1 Series 4.9152 MHz 20.8 x 13.2 mm 5 V ±100 ppm Through Hole Clock Oscillator
CO1100-4.9152MHZ-40	4.9152MHz	±100ppm	5V
Raltron
CO1 Series 4.9152 MHz 5 V ±100 ppm -20°C TO +70°C Thru-Hole TTL Clock Oscillator
CO1100-40.000MHZ	40MHz	±100ppm	5V
Raltron
CO1 Series 40 MHz 20.8 x 13.2 mm 5 V ±100 ppm Through Hole Clock Oscillator
CO1100-7.777728MHZ-40	7.77773MHz	±100ppm	5V
Raltron
CO1 Series 7.7777 MHz 5 V ±100 ppm -40°C TO +85°C Thru-Hole TTL Clock Oscillator
CO1100-70.000	70MHz	±100ppm	5V
Raltron
CO1 Series 70 MHz 20.8 x 13.2 mm 5 V ±100 ppm Through Hole Clock Oscillator
CO12050-20.000-EXT	20MHz	±50ppm	5V
Raltron
CO1 Series 20.00 MHz 5 V ±50 ppm -40°C TO +85°C Thru-Hole HCMOS Clock Oscillator
CO12050-20.000-EXT	20MHz	±50ppm	5V
Raltron
CO1 Series 20.00 MHz 5 V ±50 ppm -40°C TO +85°C Thru-Hole HCMOS Clock Oscillator

低抖動輸出時鐘振蕩器XCO793HU22-77.503MHz微處理器應用
XCO系列時鐘振蕩器特點：
快速周轉(幾天內發貨)
非常低的抖動(典型值0.6ps)
10MHz至1.2GHz頻率范圍
可選單頻、雙頻或四頻
穩定性低至20ppm (-40至+85°C)
可用尺寸:7.0x5.0mm、5.0x3.2mm、3.2x2.5mm石英貼片晶振
應用于：微處理器，微控制器，生產信息控制系統，中央處理器（central processing units的縮寫）
